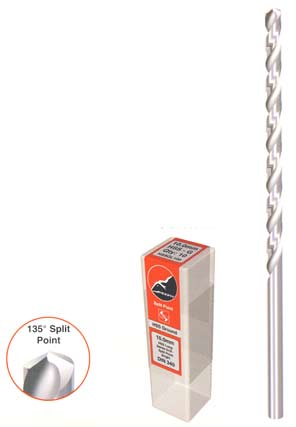

HSS - M2 Fully Ground Long Series Drills - DIN340 - Industry Pack
Description
Technical Data
General Uses
For drilling carbon and alloy steel, cast iron, non-ferrous metal and plastics.
Features
- Manufactured to DIN340
- High quality M2 grade HSS steel
- Fully ground from solid material
- Dimensionally precise
- 135° split point eradicates the need to pre-drill/centre punch. Prevents 'walking' and enables faster penetration.
- High performance split point tip.
Data
| Article Number | Drill Diameter (mm) | Working Length (mm) | Total Length (mm) | Pack Qty. | Carton Qty.
|
|---|
| HSSGL2 | 2 | 56 | 85 | 10 | 10
| | HSSGL25 | 2.5 | 62 | 95 | 10 | 10
| | HSSGL3 | 3 | 66 | 100 | 10 | 10
| | HSSGL32 | 3.2 | 69 | 106 | 10 | 10
| | HSSGL35 | 3.5 | 73 | 112 | 10 | 10
| | HSSGL4 | 4 | 78 | 119 | 10 | 10
| | HSSGL42 | 4.2 | 78 | 119 | 10 | 10
| | HSSGL45 | 4.5 | 82 | 126 | 10 | 10
| | HSSGL48 | 4.8 | 87 | 132 | 10 | 10
| | HSSGL49 | 4.9 | 87 | 132 | 10 | 10
| | HSSGL5 | 5 | 87 | 132 | 10 | 10
| | HSSGL51 | 5.1 | 87 | 132 | 10 | 10
| | HSSGL53 | 5.3 | 87 | 132 | 10 | 10
| | HSSGL55 | 5.5 | 91 | 139 | 10 | 10
| | HSSGL58 | 5.8 | 91 | 139 | 10 | 10
| | HSSGL59 | 5.9 | 91 | 139 | 10 | 10
| | HSSGL6 | 6 | 91 | 139 | 10 | 10
| | HSSGL65 | 6.5 | 97 | 148 | 5 | 10
| | HSSGL7 | 7 | 102 | 156 | 5 | 10
| | HSSGL75 | 7.5 | 102 | 156 | 5 | 10
| | HSSGL8 | 8 | 109 | 165 | 5 | 10
| | HSSGL85 | 8.5 | 109 | 165 | 5 | 10
| | HSSGL9 | 9 | 115 | 175 | 5 | 10
| | HSSGL95 | 9.5 | 115 | 175 | 5 | 10
| | HSSGL100 | 10 | 121 | 184 | 5 | 10
| | HSSGL105 | 10.5 | 121 | 184 | 5 | 10
| | HSSGL110 | 11 | 128 | 195 | 5 | 10
| | HSSGL115 | 11.5 | 128 | 195 | 5 | 10
| | HSSGL120 | 12 | 134 | 205 | 5 | 10
| | HSSGL125 | 12.5 | 134 | 205 | 5 | 10
| | HSSGL130 | 13 | 134 | 205 | 5 | 10
| |
|

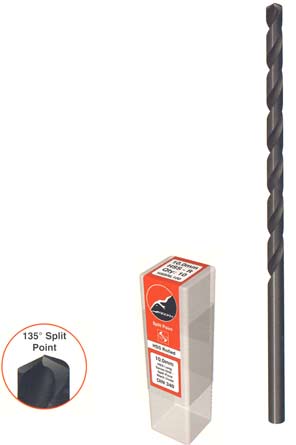

HSS - Roll Forged Long Series Drills - DIN340 - Industry Pack
Description
Technical Data
General Uses
For drilling carbon and alloy steel, cast iron, non-ferrous metal and plastics.
Features
- Manufactured to DIN340
- High quality HSS steel.
- Roll forged
- Black oxide finish
- 135° split point eradicates the need to pre-drill/ centre punch. Prevents 'walking' and enables faster penetration.
- High performance split point tip.
Data
| Article Number | Drill Diameter (mm) | Working Length (mm) | Total Length (mm) | Pack Qty. | Carton Qty.
|
|---|
| HSSRL2 | 2 | 56 | 85 | 10 | 10
| | HSSRL25 | 2.5 | 62 | 95 | 10 | 10
| | HSSRL3 | 3 | 66 | 100 | 10 | 10
| | HSSRL32 | 3.2 | 69 | 106 | 10 | 10
| | HSSRL33 | 3.3 | 69 | 106 | 10 | 10
| | HSSRL35 | 3.5 | 73 | 112 | 10 | 10
| | HSSRL4 | 4 | 78 | 119 | 10 | 10
| | HSSRL42 | 4.2 | 78 | 119 | 10 | 10
| | HSSRL45 | 4.5 | 82 | 126 | 10 | 10
| | HSSRL48 | 4.8 | 87 | 132 | 10 | 10
| | HSSRL5 | 5 | 87 | 132 | 10 | 10
| | HSSRL55 | 5.5 | 91 | 139 | 10 | 10
| | HSSRL6 | 6 | 91 | 139 | 10 | 10
| | HSSRL65 | 6.5 | 97 | 148 | 5 | 10
| | HSSRL7 | 7 | 102 | 156 | 5 | 10
| | HSSRL75 | 7.5 | 109 | 156 | 5 | 10
| | HSSRL8 | 8 | 109 | 165 | 5 | 10
| | HSSRL85 | 8.5 | 109 | 165 | 5 | 10
| | HSSRL9 | 9 | 115 | 175 | 5 | 10
| | HSSRL95 | 9.5 | 115 | 175 | 5 | 10
| | HSSRL100 | 10 | 121 | 184 | 5 | 10
| | HSSRL105 | 10.5 | 121 | 184 | 5 | 10
| | HSSRL110 | 11 | 128 | 195 | 5 | 10
| | HSSRL115 | 11.5 | 128 | 195 | 5 | 10
| | HSSRL120 | 12 | 134 | 205 | 5 | 10
| | HSSRL125 | 12.5 | 134 | 205 | 5 | 10
| | HSSRL130 | 13 | 134 | 205 | 5 | 10
| |
| |
